What is a Membrane Bioreactor (MBR)?

MBR Concept

A membrane bioreactor (MBR) is a wastewater treatment process that combines membrane filtration with biological treatment. A suction force is applied to draw the water through the membrane, while the sludge is retained on the membrane surface


MBR is a proven technology that offers important advantages over the conventionally activated sludge process. MBR retains the biomass completely thus the biological reactor can work at high biomass concentrations, as a result a higher effluent quality is achieved.


When ↑ MLSS ⇒ ↓ Volume
When ↑ MLSS ⇒ ↓ Cm
When ↑ MLSS, Cm ct and V cte. ⇒ Increase in degradation capacity


Better effluent quality
Smaller space requirements
Ease of automation
Lower sludge production

MBR Configuration

The membrane units can be installed either directly in the reactor or in downstream filtration tanks. Both ways ensure that activated sludge, bacteria and viruses are safely retained there. A conventional secondary settling tank is no longer needed to achieve the highest effluent quality.

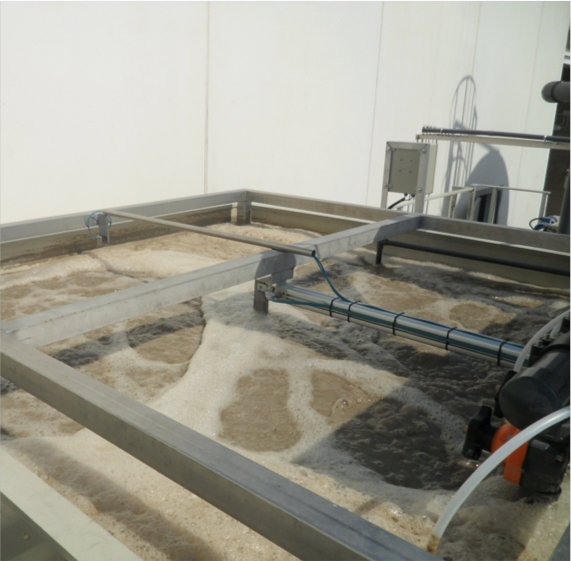

MBR Internal Configuration:
Biológical Reactor + UF Membranes


MBR External Configuration:
Biológical Reactor + UF Membranes


Advantages of MBR Technology

Due to…

  • No need for gravity settling step,
  • Total retention of colloidal biomass,
  • Retention of both biodegradable and non biodegradable SS
  • High biomass concentrations in the reactor
  • Operation with longer cellular retention time

We achieve…

  • Smaller plant footprint
  • Specialization of bacteria to degrade slowly biodegradable matter (emerging contaminants, pesticides,…).
  • High efficiency in the elimination of nitrogen
  • Increase in the treatment capacity of an existing reactor
  • Lower sludge production
  • Wastewater disinfected (regarding bacteria and considering a 0,02 microns porous size)



Footprint: X m2
Organic Load: X KgCOD/day
Mlss: 2000 mg/L
Sludge production: X Kg


Footprint: ¼ X m2
Organic Load: 2·X kgCOD/day
Mlss: 8000 mg/L
Sludge production: ½ X kg
